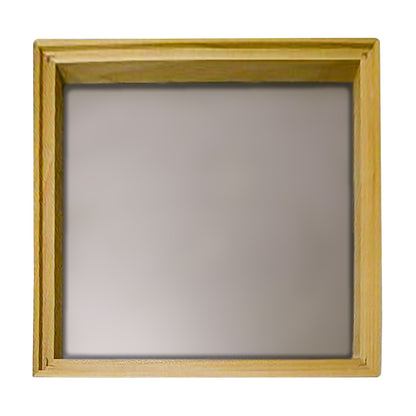

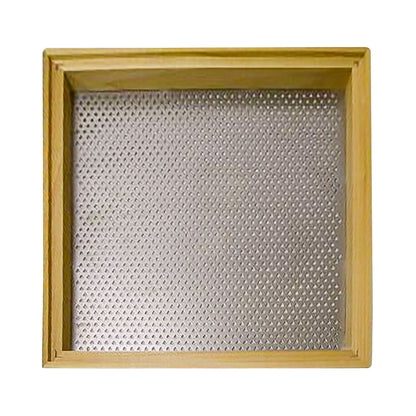

Seedburo's hand testing screens are a must for anyone who buys, cleans, or grades seed or grain. They are made of selected straight grained wood with nesting frames. These screens can be stacked together with a blank bottom pan to make several separations at one time.

A generous assortment of sizes will enable you to experiment with various separations and select the correct screens for your larger cleaning or sizing operations. Our hand test screens are an excellent choice for experimental or laboratory use when only small samples are available. Made in USA.

Ship wt: 3 lb. each

Please specify the screen perforation sizes on your order, they can be added in the comments field. Bottom pans are sold separately.

Note: Screens are custom made for order - non-returnable

Round Holes (64ths of an inch) Round Holes (64ths of an inch) Oblong Holes Oblong Holes Wires/Sq. Inch
Inches MM Inches MM Inches MM Inches MM
1/25 1.016 23 9.127 1/26 x 1/2 0.98 x 12.70 13/64 x 3/4 5.159 x 19.050 10 x 10
1/24 1.058 23½ 9.330 1/25 x 1/2 1.02 x 12.70 13/64 x 1¼ 5.159 x 31.75 12 x 12
1/23 1.102 24 9.525 1/24 x 1/2 1.06 x 12.70 13½/64 x 3/4 5.357 x 19.050 14 x 14
1/22 1.153 24½ 9.720 1/23 x 1/2 1.10 x 12.70 13½/64 x 1¼ 5.357 x 31.75 15 x 15
3/64 1.190 25 9.922 1/22 x 1/2 1.153 x 12.70 14/64 x 3/4 5.556 x 19.050 16 x 16
1/21 1.200 25½ 10.120 3/64 x 5/16 1.191 x 7.938 14½/64 x 3/4 5.75 x 19.050 18 x 18
1/20 1.270 26 10.319 3/64 x 1/2 1.19 x 12.70 15/64 x 3/4 5.953 x 19.050 20 x 20
1/19 1.336 26½ 10.520 1/20 x 1/2 1.270 x 12.700 15½/64 x 3/4 6.15 x 19.050 22 x 22
1/18 1.410 27 10.716 1/19 x 1/2 1.34 x 12.70 16/64 x 3/4 6.350 x 19.050 24 x 24
1/16 1.587 27½ 10.910 1/18 x 3/4 1.410 x 19.050 16½/64 x 3/4 6.55 x 19.050 26 x 26
1/15 1.691 28 11.113 1/18 x 1/2 1.410 x 12.700 17/64 x 3/4 6.747 x 19.050 28 x 28
1/14 1.813 28½ 11.310 1/17 x 1/2 1.494 x 12.700 17½/64 x 3/4 6.95 x 19.050 30 x 30
1/13 1.953 29 11.509 1/15 x 1/2 1.691 x 12.700 18/64 x 3/4 7.144 x 19.050 32 x 32
1/12 2.116 29½ 11.710 1/15 x 3/4 1.69 x 19.05 18½/64 x 3/4 7.34 x 19.050 34 x 34
