The basic plan of the zone sampler is to allow the product to pass through the sampler as it descends through the liquid. The top and bottom valves open with the pressure of the liquid against the descending sampler allowing the liquid to pass through the sampler. When the instrument is brought to a stop the valves close. Capacity 800 milliliters.
Net wt. 3 lbs. Ship wt. 4 lbs. Actual dims: 15" H x 3" dia. Ship dims 19" L x 6" W x 4" H.

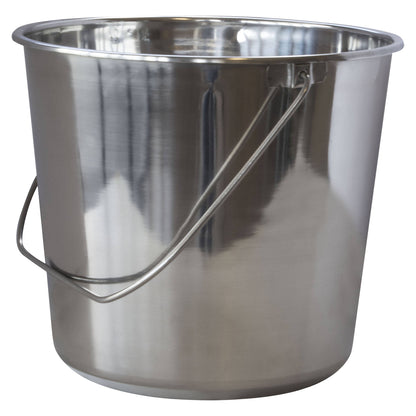

Stainless steel bucket extra large 22 ga. stainless steel bucket with long sturdy handle for carrying or hanging. This aids in the collection and mixing of the sample. 13" diameter at top tapers to bottom 10.25" diameter.

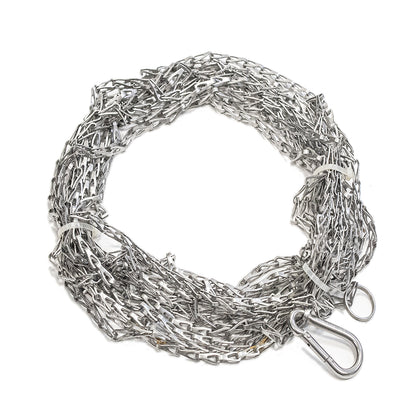

Stainless steel link chain in 25 ft. length with clips on each end to attach to the sampler or beaker. Bucket: Net wt: 3 lbs, Ship wt: 5 lbs, Ship dims: 15" (L) x 15" (W) x 15" (H).
