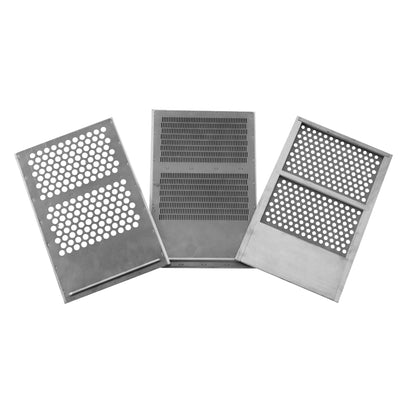

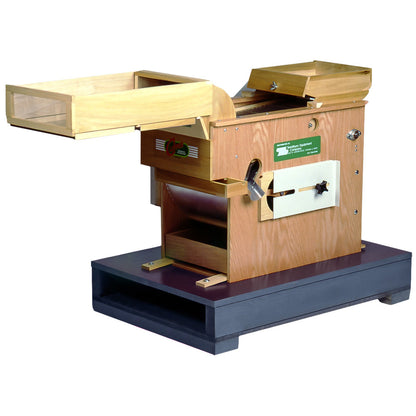

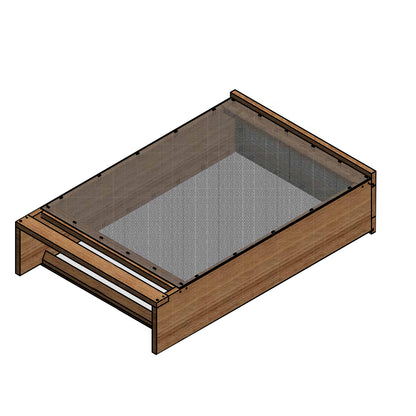

The Clipper Model 400 Office Tester & Cleaner offered by Seedburo is an extremely efficient cleaner for office and laboratory use. This machine will provide accurate, dependable performance for small lot cleaning, testing or sampling. It is commonly used in seed plants for sampling large lots of seed for correct screen selection on larger, commercial size cleaners. It is also widely used in university laboratories for agronomy research and testing and flower and vegetable growers use the Model 400 for specialized cleaning, grading and sizing. The Model 400 has a compact, portable design and features an eccentric (shoe) drive that uses two (2) 10" x 15" screens. One top screen for scalping, one bottom screen for cleaning and grading. Perforated metal or wire cloth screens are available in over 175 different sizes. Other features include a powerful bottom blast fan driven by a three-step pulley, adjustable slide on the air intake openings to provide intermediate air regulation and an optional, removable catchall with either removable trays (shown) or solid bottom to catch air screenings.

Net wt. 70 lbs. Actual dims. 25" L (45-3/4" L with catchall) x 17" W x 23" H. Ship wt. 110 lbs. Domestic Dims. 32" L x 24" W x 32" H. Export ship wt. 185 lbs. Export ship dims. 33" L x 25" W x 33" H.



Suggested Screen Recommendations (Size will vary from variety and crop conditions)

  • 14 = 14/64 Round Hole
  • 1/21 = 1/21″ Round Hole
  • 1/13 × ½ = 1/13″ Wide × ½″ Long, Slot
  • 8/64 × ¾″ = Slot

Please specify the 2 screen perforation sizes on your order, they can be added in the comments field.



GRAINS & OILS TOP SCREEN BOTTOM SCREEN
Barley, plump 9/64 × ¾ 5/64 × ¾
Barley, thin 8/64 × ¾ 1/13 × ½
Buckwheat 14 6/64 × ¾
Canola 8 1/19
Corn, Field 30 14
Cottonseed, acid delinted 18 9/64 × ¾
Cottonseed, mechanically delinted 20 9½/64 × ¾
Flax, large 1/13 × ½ 6
Millet, Proso 8 1/16
Millet, Siberian 6 1/15
Milo, Maize 12 1/12 × ½
Oats, large 18 1/14 × ½
Popcorn 19 11
Rice, unhulled, long grain 14 1/16 × ½
Rye 12 1/16 × ½
Safflower 11/64 × ¾ 6/64 × ¾
Sesame 1/20 × ½ 6 × 24
Sorghum 10 1/15
Spelt (Hulled) 16 5 × ¾
Spelt (Unhulled) 20 6 × ¾
Sunflower, Black Oil 20 11
Sunflower, Large Stripped 28 13
Wheat, plump 14 5½/64 × ¾
Wheat, thin 12 1/13 × ½
Wheat, Durum 16 6½/64 × ¾
SMALL LEGUME SEED TOP SCREEN BOTTOM SCREEN
Alfalfa 1/14 6 × 24
Clover, Crimson 1/13 6 × 22
BEANS & PEAS TOP SCREEN BOTTOM SCREEN
Cranberry Beans 30 16/64 × ¾
Great Northern Beans 24 11/64 × ¾
Kidney Red Beans 28 14/64 × ¾
Lima, Baby Beans 30 19
Lima, Large Beans 48 26
Pinto Beans 24 10/64 × ¾
Black Turtle 20 9/64 × ¾
Austrian Winter Peas 17 10/64 × ¾
Black-eyed Peas 24 11/64 × ¾
Canada Field Peas 18 9/64 × ¾
Chick Peas, Garbanzos 26 12/64 × ¾
Soybeans, Small 2800-3200 Seeds Per Pound 18 10/64 × ¾
Soybeans, Medium 2500-2800 Seeds Per Pound 20 11/64 × ¾
Soybeans, Large 2200-2500 Seeds Per Pound 24 12/64 × ¾
Lentils 7/64 × ¾ 11
TREE SEED TOP SCREEN BOTTOM SCREEN
Birch Black 14 6
Cedar Red 1/18 × ¼ 6
Fir, Douglas 15 1/15 × ½
Juniper 22 8/64 × ¾
Locust, Honey 20 12
Locust, Black 10 6
Pine, Norway 9 1/13
Spruce, Black 1/13 6 × 24
VEGETABLE & FRUIT TOP SCREEN BOTTOM SCREEN
Asparagus 12 9
Beet, California 20 8
Broccoli 7 20 × 20
Cabbage 7 1/17
Celery 1/17 30 × 30
Cucumber 17 9
Carrot 6 6 × 28
Muskmelon 16 9
Onion 9 1/15
Pepper 17 6/64 × ¾
Radish 9 1/14
Spinach 8 1/15
Squash 34 22
Watermelon 24 16
SPICE SEED TOP SCREEN BOTTOM SCREEN
Basil 6R 6 × 24
Cumin 10 6 × 28
Mustard, Dark 1/15 6 × 22
Pepper, Whole Black 17 6/64 × ¾
FLOWER SEED TOP SCREEN BOTTOM SCREEN
Aster 8 6 × 28
Black-eyed Susan 18 × 18 6 × 36
Calendula 12 6
Daisy 1/18 × ¼ 6 × 26
Marigold 1/15 × ¼ 6 × 34
Petunia 1/24 50 × 50
SPECIALTY CROPS TOP SCREEN BOTTOM SCREEN
Tobacco Seed 26 × 26 60 × 60



 Round Holes             (64ths of an inch) Oblong Holes Square Holes Wires/Sq. Inch Triangular Holes
Inches MM Inches MM Inches MM 10x10 9/64 or 5½V
1/22 1.153 1/26 x ½ 0.98 x 12.70 32/64 12.7 12x12 10/64 or 6V
3/64 1.19 1/25 x ½ 1.02 x 12.70 14x14 11/64 or 6½V
1/21 1.2 1/24 x ½ 1.06 x 12.70 15X15 12/64 or 7V
1/20 1.27 1/23 x ½ 1.10 x 12.70 16x16 17/64 or 9½V
1/19 1.336 1/22 x ½ 1.153 x 12.70 18x18
1/18 1.41 3/64 x 5/16 1.191 x 7.938 20x20
1/16 1.587 3/64 x ½ 1.19 x 12.70 22x22
1/15 1.691 1/20 x ½ 1.270 x 12.700 24x24
1/14 1.813 1/19 x ½ 1.34 x 12.70 26x26
1/13 1.953 1/18 x ¾ 1.410 x 19.050 28x28
1/12 2.116 1/18 x ½ 1.410 x 12.700 30x30
6 2.381 1/17 x ½ 1.494 x 12.700 32x32
6½ 2.579 1/15 x ½ 1.691 x 12.700 34x34
7 2.778 1/15 x ¾ 1.69 x 19.05 36x36
7½ 2.976 4½/64 x ½ 1.785 x 12.700 38x38
7¾ 3.08 4½/64 x ¾ 1.785 x 19.050 40x40
8 3.175 4¾ x ¾ 1.890 x 19.050 45x45
8½ 3.373 4⅞/64 x ½ 1.934 x 19.050 50x50
8¾ 3.47 4⅞/64 x ¾ 1.934 x 19.050 55x55
9 3.572 5/64 x ½ 1.984 x 12.700 60x60
9½ 3.77 5/64 x ¾ 1.984 x 19.050 3x20
9¾ 3.87 5.25/64 x ¾ 2.080 x 19.050 4x18
10 3.969 5½/64 x ½ 2.182 x 12.700 4x19
10½ 4.167 5½/64 x ¾ 2.182 x 19.050 4x20
10¾ 4.27 5.8/64 x ¾ 2.300 x 19.050 4x22
11 4.366 6/64 x ½ 2.380 x 12.700 6x18
11½ 4.564 6/64 x ¾ 2.380 x 19.050 6x20
11¾ 4.66 6/64 x 1-1/32 2.380 x 26.160 6x22
12 4.763 6½/64 x ¾ 2.579 x 19.050 6x24
12½ 4.961 7/64 x ¾ 2.778 x 19.050 6x26
13 5.159 7.25 x ¾ 2.88 x 19.050 6x28
13½ 5.357 7½/64 x ¾ 2.972 x 19.050 6x30
14 5.556 8/64 x ¾ 3.175 x 19.050 6x32
14½ 5.754 8/64 x 1 3.18 x 25.4 6x34
14¾ 5.85 8/64 x 1¼ 3.18 x 31.75 6x36
15 5.953 8½/64 x ¾ 3.373 x 19.050 6x38
15½ 6.15 8½/64 x 1¼ 3.37 x 31.75 6x40
16 6.35 9/64 x ½ 3.57 x 31.75 6x42
16½ 6.548 9/64 x ¾ 3.527 x 19.050
17 6.747 9/64 x 1¼ 3.57 x 31.75
17½ 6.945 9½/64 x ¾ 3.770 x 19.050
18 7.144 9½/64 x 1¼ 3.77 x 31.75
18½ 7.342 10/64 x ¾ 3.969 x 19.050
19 7.541 10/64 x 1¼ 3.969 x 31.75
19½ 7.739 10½/64 x ¾ 4.17 x 19.050
20 7.938 10½/64 x 1¼ 4.17 x 31.75
20½ 8.136 11/64 x ¾ 4.366 x 19.050
21 8.334 11/64 x 1¼ 4.366 x 31.75
21½ 8.532 11½/64 x ¾ 4.564 x 19.050
22 8.731 11½/64 x 1¼ 4.564 x 31.75
22½ 8.929 12/64 x ¾ 4.763 x 19.050
23 9.127 12/64 x 1¼ 4.763 x 31.75
23½ 9.33 12½ x ¾ 4.961 x 19.050
24 9.525 12½ x 1¼ 4.961 x 31.75
24½ 9.72 13/64 x ¾ 5.159 x 19.050
25 9.922 13/64 x 1¼ 5.159 x 31.75
25½ 10.12 13½/64 x ¾ 5.357 x 19.050
26 10.319 13½/64 x 1¼ 5.357 x 31.75
26½ 10.52 14/64 x ¾ 5.556 x 19.050
27 10.716 14½/64 x ¾ 5.75 x 19.050
27½ 10.91 15/64 x ¾ 5.953 x 19.050
28 11.113 15½/64 x ¾ 6.15 x 19.050
28½ 11.31 16/64 x ¾ 6.350 x 19.050
29 11.509 16½/64 x ¾ 6.55 x 19.050
29½ 11.71 17/64 x ¾ 6.747 x 19.050
30 11.906 17½/64 x ¾ 6.95 x 19.050
30½ 12.1 18/64 x ¾ 7.144 x 19.050
31 12.303 18½/64 x ¾ 7.34 x 19.050
31½ 12.5 19/64 x ¾ 7.541 x 19.050
32 12.7 20/64 x ¾ 7.939 x 19.050
33 13.1 21/64 x ¾ 8.33 x 19.050
34 13.949 22/64 x ¾ 8.731 x 19.050
34½ 13.69 22½/64 x 1 8.93 x 25.400
35 13.89 23/64 x ¾ 9.13 x 19.050
35½ 14.09 24/64 x ¾ 9.525 x 19.050
36 14.287 28/64 x ¾ 11.110 x 19.050
38 15.081 30/64 x ¾ 11.910 x 19.050
40 15.875 32/64 x ¾ 12.700 x 19.050
42 16.669 36/64 x ¾ 14.29 x 19.050
44 17.46 N/A 2.15mm x 20mm
46 18.26 N/A 2.25mm x 20mm
47 18.65 N/A 3.75mm x 20mm
48 19.05 N/A 4mm x 20mm
50 19.84 N/A 4mm x 23mm
52 20.64 N/A 4mm x 31mm
54 21.43 N/A 4.25mm x 20mm
55 21.83 N/A 4.25mm x 31mm
56 22.225 N/A 4.35mm x 20mm
57 22.62 N/A 4.35mm x 31mm
64 25.4 N/A 4.4mm x 20mm
1¾ 31.75 N/A 4.4mm x 31mm
N/A 5.5mm N/A 4.5mm x 20mm
N/A 7.5mm N/A 4.5mm x 31mm
N/A 10mm N/A 4.75mm x 20mm
N/A 4.75mm x 31mm
N/A 5.25mm x 20mm
N/A 5.25mm x 31mm
N/A 5.5mm x 20mm
N/A 5.5mm x 31mm
N/A 5.75mm x 20mm
N/A 5.75mm x 31mm
N/A 6mm x 20mm
N/A 6mm x 23mm
N/A 6mm x 31mm
N/A 12mm x 30mm



400SMX:
1/22" ROUND
1/24" X 1/2" OBLONG
1/22" X 1/2" OBLONG
1/22" X 1/2" DIAGONAL
3/64" X 5/16" OBLONG
1/20" X 1/2" OBLONG
1/18" X 3/4" OBLONG
1/16" X 1/4" OBLONG
12 TRIANGLE
