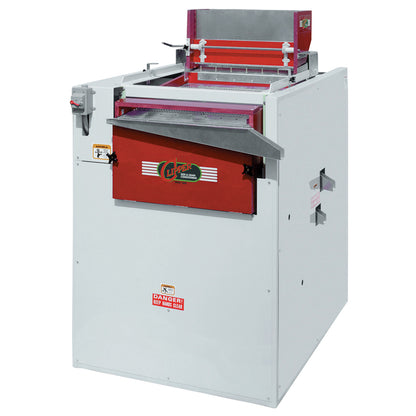

Seedburo's Clipper Eclipse Model 324 cleaner is ideal for small commercial and on-farm applications. The Eclipse Model 324 is a durable, well built machine. Features a heavy-duty tubular steel frame, 13-ply marine grade plywood shoes, scotch-ply hangers, heavy-duty eccentric (shoe) drive, ball tray screen cleaning system and plain inlet hopper. Designed with three (3) 24 ½" x 22¼" screens. The top screen handles scalping while the bottom two screens offer thorough cleaning and grading. The bottom two screens can be set to a scalp/sift flow by removing the two-way splitter. Adjustable air separation completes the efficient cleaning process. Over 175 different sizes of perforated metal or wire cloth screens are available.

Actual dims. 54" L x 41" W x 63" H. Net wt. 750 lbs Ship wt. 1000 lbs. Ship dims. 57" L x 47" W x 72" H.

*Capacity may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and the percentage of foreign material acceptable in final product. Capacities shown above are for the split-flow arrangement.
