• Product Description

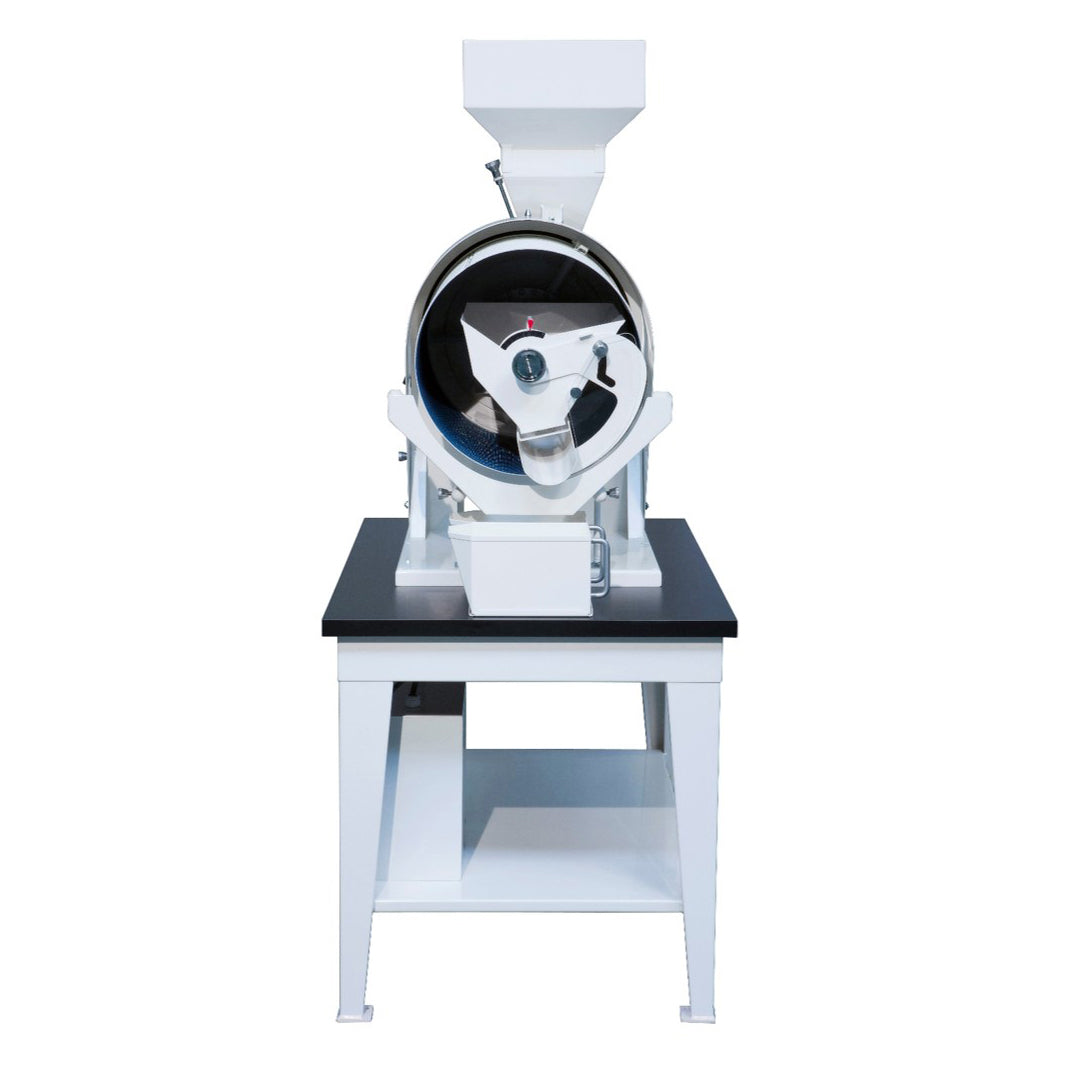

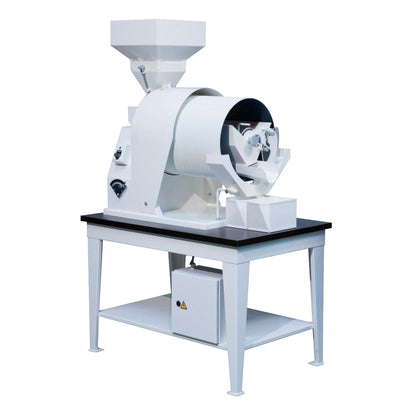

The LA-T, Laboratory Indent Cylinder Separator, is used for length sizing and features quick-change cylinders, variable speed cylinder drive, a vibrating conveyor for liftings discharge, and two collection trays. The unit is supplied with one cylinder and operates on a 1/5 HP motor that requires 90 watts of power and an eccentric shaft that operates at 18 or 40RPM. The LA-T is rated at 150 lbs. (68Kgs) per hour continuous cleaning capacity on wheat.  The cylinder is 16" in diameter and 20" long. The Indent Separator can be converted to accommodate perforated cylinders in place of indents with the addition of the conversion kit offered below.

Dims with stand:50"L X 34"W X 63" H, Ship wt. 800 lbs
