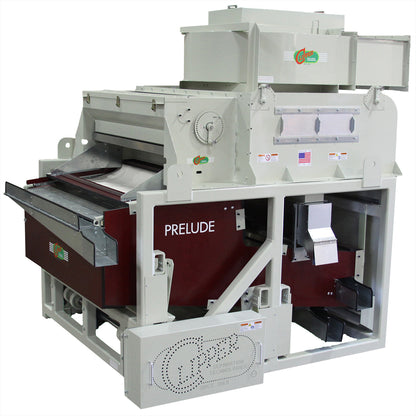

Prelude Model 526 Series Cleaner

Prelude Model 526 Series Cleaner
Prelude Model 526 Series Cleaner

SKU: PR526A/F
Shipping calculated at checkout.
Quantity must be 1 or more

Product Literature

The Prelude 526 series air screen cleaner is designed for precision seed cleaning for many applications. The Prelude will efficiently clean most varieties of cereal grains, oilseeds, legumes and many more. The Prelude utilizes a 54” wide screen and provides adaptable screen arrangements. The cleaner has three screen decks with a total of five (5) 54” W x 26” L screens. The top deck holds one scalping screen while the next two hold two screens that can be set up for scalp/sift or a split sift configuration. With a screening capacity of more than 50 square feet, precision separations can be made efficiently. Over 175 different sizes of perforated metal or wire cloth screen are available.

Stability distinguishes the Prelude 526 from other similar sized cleaners. The 3” x 3” tubular steel frame and smooth eccentric motion allow for many applications. The optional air system is designed to take full advantage of quick and efficient air lift separation. Fan velocity adjustments are easily made and will accommodate a wide range of commodities. The Prelude Model 526 base model is available without the optional fan air system, while our Model 526A includes the fan/air system.

Net wt: 3800 lbs / Domestic Ship dims: 91½” L x 78½” W x 91” H.
Export Ship wt: 5000 lbs. / Export Ship dims: (two crates) 96” L x 84” W x 60” H and 75” L x 78” W x 55” H.

*Capacity may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and the percentage of foreign material acceptable in final product. Capacities shown above are for the split-flow arrangement.


Small Seed Medium Seed Large Seed & Wheat Market Cleaning
*100BPH/2.6TPH *175BPH/4.6TPH *300BPH/8.0TPH *600BPH/14.7TPH
