Seedburo Model 45 Bag Closing Conveyor System

Seedburo Model 45 Bag Closing Conveyor System

1 1

Seedburo Model 45 Bag Closing Conveyor System

Seedburo Model 45 Bag Closing Conveyor System

Shipping calculated at checkout.
View full details

$12,650.00
` $12,650.00
Sale Sold out

Note: Domestic/Export crating must be selected with the items above.

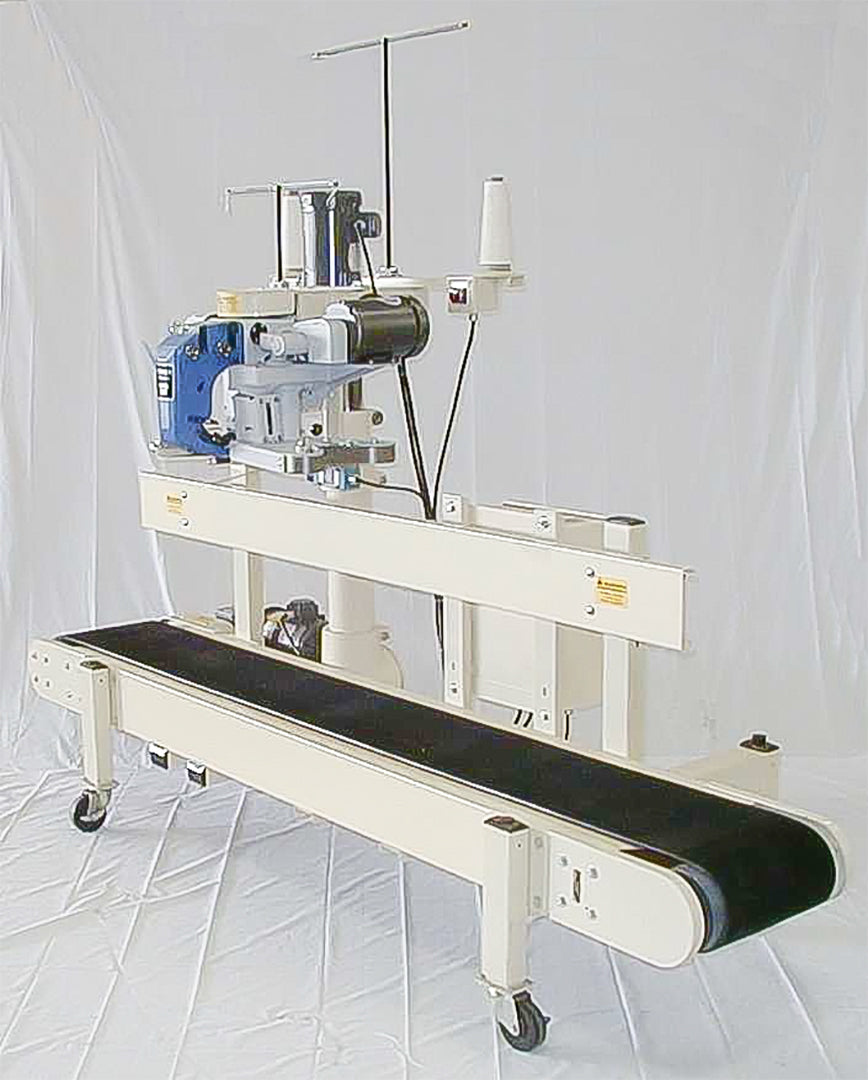

The Seedburo Model 45 Bag Closing Conveyor includes a 12" wide belt, 8' overall length flat bed conveyor with a ½ HP motor gear and roller chain transmission drive. The unit features individual, adjustable leg height, attached sewing pedestal (without sewing head), and a sewing head mounting plate to accommodate several different types of sewing machines. The system also has a mounting bracket for Power In-Feed and ½ HP V-belt transmission drive for the sewing head. Standard belt speed is 30 FPM (40 and 45 FPM speeds are optional).

Conveyor system is constructed of heavy gauge steel, aluminum and iron casting. Systems include electric motor starters with overload protection, transformer for controls in NEMA 12 enclosure, foot switch to operate the conveyor and sewing head, and a limit switch to stop the conveyor.

SPECIFICATIONS: Conveyor dims. 96" L x 12" W, Ship dims. 107" L x 38" W x 44" H, Ship wt. 1200 lbs (with sewing head), Ship wt (head only) 63 lbs. 110V or 220V, 50/60Hz., 3PH
