Large Plot Thresher

Large Plot Thresher

Note: Domestic/Export crating must be selected with the items above.

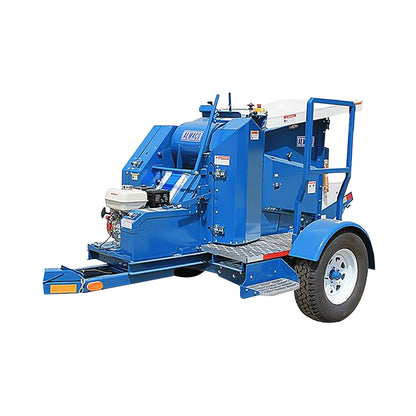

The Almaco Large Plot Thresher is a versatile, high capacity machine perfect for threshing large plots of Cereals, Forages, Legumes and Small Grains,

Ship dims: 134" (L) x 82" (W) x 75" (H), Ship wt: 2650 lbs
Export dims: 122" (L) x 82" (W) x 75" (H), Export wt: 2750 lbs.



Standard Equipped

  • Overshot-style cylinder and concave with 14" diameter x 175/8", with your choice of cylinder type
  • Variable speed v-belt drive for threshing cylinder, cylinder speed range 300–1500 RPM
  • Adjustable enclosed overshot concave matched to threshing cylinder type
  • Steel feeding table, hinged opposite operator
  • Operators platform
  • Metal shaker pan
  • Centrifugal fan winnowing blower with control shutter
  • Canvas deflector baffles
  • Winnowing pan with adjustable angle
  • Seed collecting chute with side exit opposite operator
  • V-belt drives for low maintenance and quiet operation
  • Safety guards
  • Screw-type leveling jack and trailer hitch for 2" ball (50mm)
  • Rubber cushion axle assembly, tapered roller bearings, 15" rims and radial tires
  • Combination tail/stoplights, turn signals,
  • rear reflectors
  • Strawpuller assembly



Selection Guide For Each Cylinder/Concave Style

Cylinder/Concavev Crops
Square-spiked tooth (most aggressive) Cereals, Oats, Rice, Wheat, etc.
Round-spiked tooth Sorghum, Soybeans
Metal raspbar Grasses, Field Peas, Soybeans, Sunflower
Rubber-coated metal raspbar Sorghum, Soybeans, Field Peas

Please select a Base Model and one each from: Power Configurations, Sieve Configurations, Threshing Cylinder and Concave Configurations, Machine Options and Accessories, and Domestic or Export Required Packing





Base Model Power
Configurations
Sieve
Configurations
Threshing Cylinder
and Concave
Configurations
Machine Options
and Accessories
Required Packing
No. SLPT 5HP, 220V/60Hz
Electric Motor
No. SLPT-A1
6mm Graepel Sieve
(Grass) and Tailrake
No. SLPT-C1
SN Sieve for Corn
No. SLPT-C7
Seed Catch Bucket
No. SLPT-D1
Domestic Packing
No. SLPT/DOM
5HP, 220V/50Hz
Electric Motor
No. SLPT-A2
10mm Graepel Sieve
for Small Seeded Crops
and Tailrake
No. SLPT-C2
Spiked Tooth
No. SLPT-B2
Seed Tag Holder
No. SLPT-D2
Export Packing
Charges
No. SLPT/EX
8HP Honda Gas Engine
with Elec. Start
No. SLPT-A4
18mm Graepel Sieve
and Tailrake
No. SLPT-C3
Metal Raspbar
No. SLPT-B3
Pneumatic Seed
Delivery To Operator
No. SLPT-D3
8HP Honda Gas Engine
with Elec. Start with
High Amp Charger
No. SLPT-A5
20mm Graepel Sieve
and Tailrake
No. SLPT-C4
Metal Raspbar with
Threshing Cylinder
E-Brake
No. SLPT-B4
Air Compressor with
Horizontal Air Tank
No. SLPT-D4
10HP Diesel Engine
with Elec. Start
No. SLPT-A7
22mm Graepel Sieve
and Tailrake
No. SLPT-C5
Electric Engagement
Clutch for Threshing
Cylinder Drive
No. SLPT-D5
SN Sieve for Corn
No. SLPT-C7
