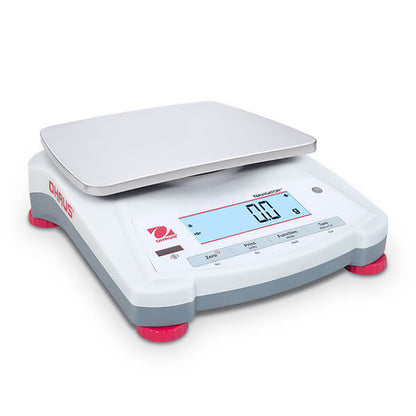

Ohaus Navigator™ Multi-Purpose Portable Balances

Ohaus Navigator™ Multi-Purpose Portable Balances

Skip to product information
1 of 1

Ohaus Navigator™ Multi-Purpose Portable Balances

Ohaus Navigator™ Multi-Purpose Portable Balances

Shipping calculated at checkout.
Product Variant Selector
View full details

Regular price $504.00
Regular price Sale price ` $504.00
Sale Sold out

OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.

  • Navigator offers essential weighing applications at a competitive price point.
  • Advanced weighing technology offers one-second stabilization for fast and accurate weighing results, improving operator efficiency, productivity and throughput.
  • Overload protection system that can withstand loads up to four times the rated capacity safeguards the balance.



Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing

Display
Liquid Crystal Display (LCD) with backlight

Operation
AC adapter (included) or 4 C batteries (not included)

Communication
RS232, USB, or Ethernet (available as accessories)

Construction
ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble

Design Features
Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings



Model NV2201 NV621
Capacity 2200g 620g
Readability 0.1g
Pan Size 5.7 in x 7.5 in
Battery Life 270 Hours with Disposable Batteries
Communication Ethernet (Available as an Accessory);
RS232 (Available as an Accessory); USB (Available as an Accessory)
Dimensions 9.1 in x 2.8 in x 8 in
Display LCD display with white backlight
Inuse Cover No
Legal for Trade N/A
Linearity ± 0.2g
Net Weight 2.2 lb (1 kg)
Pan Construction Stainless Steel
Power 4 C (LR14) Batteries (Not Included); AC Adapter (Included)
Repeatability, Typical 0.1g
Stabilization Time 1s
Tare Range To capacity by subtraction
Transportation Case Available as an Accessory
Units of Measurement Ounce Troy; Pennyweight; Newton; Grain; Gram; Kilogram; Pound; Carat; Ounce; Pound: Ounce Same Except Kilogram
Working Enviornment 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
